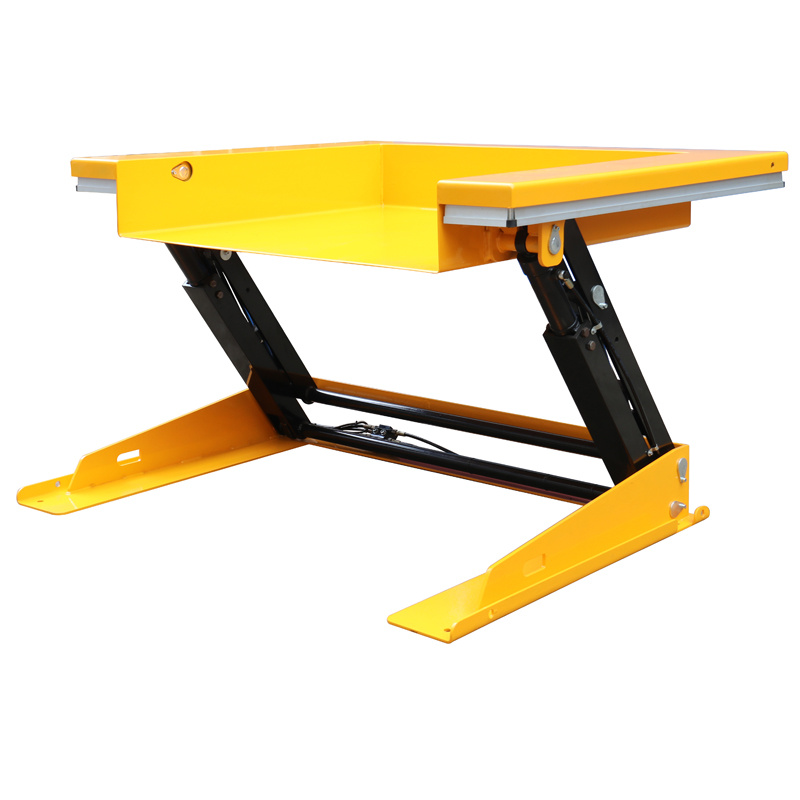

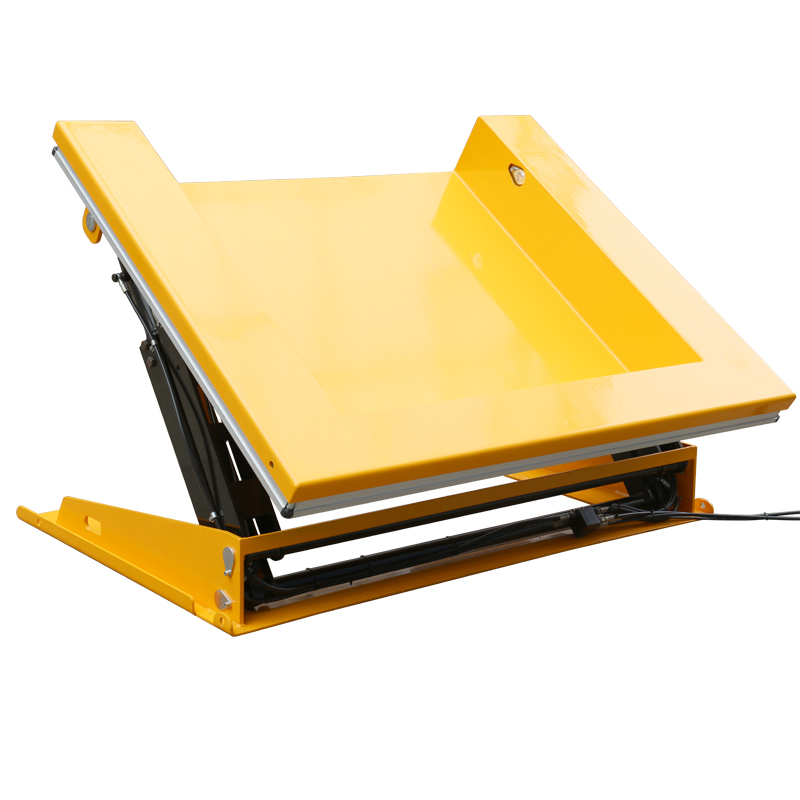

Tabela Tilter Platforma Biçûk ALT750

  • Small platform for special size materials
  • Meet EN1570 norm and ANSI/ASME safety standard
  • Ergonomic structure design
  • One mechanism implements lifting and tilting to replace the traditional lift table
i-lift No.13148011314802131480313148041314805
CinsALT750ALT1500ALT1500ULALT1500UMALT1500US
Kanînkg(lbs)750(1650)1500(3300)1500(3300)1500(3300)1500(3300)
Lowering  Heightmm (înç)235(9.3)235(9.3)6(0.2)6(0.2)6(0.2)
Raised  Heightmm (înç)820（32.3）820（32.3）820（32.3）820（32.3）820（32.3）
Platfrom  Size   LxWmm (înç)1300x800(51.1x31.5)1300x800(51.1x31.5)1380x1730(54.3x68.1)1380x1510（54.3x59.4)1380x1310(54.3x51.5)
Tiltable   degree0∽-45°0∽-45°0∽-45°0∽-45°0∽-45°
Demjimêrsec1816161616
Power Pack0.75kw0.75kw0.75kw0.75kw0.75kw
Pîvanê netkg(lbs)300(660)355(781)440(968)410(902)390(858)
